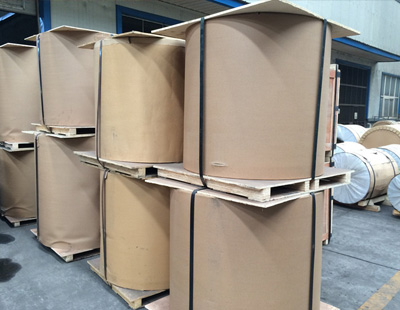

Export standard, wooden pallet or wooden case
Aluminum polyester tape provides conductivity and electromagnetic insulation. PET film provides electrical insulation and high mechanical strength. About 100 ℃,EAA hotmelt resin has good result to PE materials after heating.
◆ Hot melt resin has a considerable advantage to reduce the 70% of the thickness compared to the EAA heat sealable film.
◆ Professional glue for metals
◆ Wide range of application andz easy to use
◆ RoHS and SGS standard
Aluminum polyester tape provides conductivity and electromagnetic insulation. PET film provides electrical insulation and high mechanical strength. About 100 ℃,EAA hotmelt resin has good result to PE materials after heating.
Size | ||||
Thickness | Width | Length | O.D | I.D |
0.01mm-03mm | 3mm-1300mm | 1000m-30000m | 100mm-1000mm | 52mm/76mm |
Technical Data Sheet AL+PET+EAA | ||||
Constructure | Total Thickness | Weight (g/m2) | Yield (m2/kg) | |
AL7 PET12 EAA25 | 49 mic | 65 | 15.4 | |
AL7 PET15 EAA25 | 52 mic | 69 | 14.5 | |
AL9 PET12 EAA25 | 51 mic | 71 | 14 | |
AL9 PET15 EAA25 | 54 mic | 75 | 13.3 | |
AL9 PET19 EAA25 | 58 mic | 80 | 12.5 | |
AL9 PET23 EAA25 | 62 mic | 86 | 11.6 | |
AL12 PET15 EAA25 | 57 mic | 84 | 11.9 | |
AL12 PET23 EAA25 | 65 mic | 95 | 10.5 | |
AL20 PET12 EAA25 | 102 | Weight (g/m2) | Yield (m2/kg) | |
AL25 PET12 EAA25 | 68 mic | 115 | 8.7 | |
AL25 PET25 EAA25 | 80 mic | 133 | 7.5 | |
AL+PET+AL+EAA: | ||||
Constructure | Total Thickness | Weight (g/m2) | Yield (m2/kg) | |
AL7 PET12 AL7 EAA25 | 59 mic | 85.5 | 11.7 | |
AL7 PET15 AL7 EAA25 | 62 mic | 89.7 | 11.1 | |
AL9 PET12 AL9 EAA25 | 63 mic | 96.3 | 10.4 | |
AL9 PET15 AL9 EAA25 | 66 mic | 100.5 | 10 | |
AL9 PET19 AL9 | 70 mic | 106.1 | 9.4 | |
EAA25 | ||||
AL9 PET23 AL9 EAA25 | 74 mic | 111.7 | 9 | |
AL12 PET15 AL12 EAA25 | 72 mic | 116.7 | 8.6 | |
AL12 PET23 AL12 EAA25 | 80 mic | 127.9 | 7.8 | |
AL20 PET12 AL20 EAA25 | 86 mic | 155.7 | 6.4 | |
AL25 PET12 AL25 EAA25 | 96 mic | 182.7 | 5.5 | |
AL25 PET25 AL25 EAA25 | 106 mic | 200.9 | 5 |

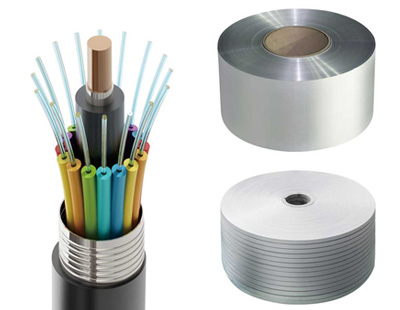

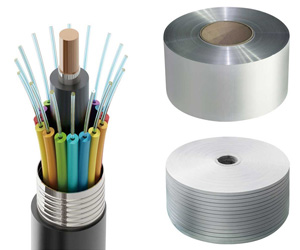

Copolymer coated aluminum tape applies for shielding and moisture barrier for copper pair cables. It consists of an aluminum tape coated on one side or both sides with an adherent ethylene copolymer with clear or blue color. The copolymer provides excellent adhesion to the aluminium substrate and has the chemical resistance and general characteristics of low-density polyethylene and gives excellent bond strength to all types of polyethylene. Aluminum alloys available 1050, 1060, 1200, 1145, 8011 according to customized requirements.
Property | Unit | Values | Test Method | |
Color | Natural or Blue | N/A | ||
Thickness | Al | 0.15/0.20 | mm | N/A |
EAA | 0.05 | mm | N/A | |
Tensile Strength | MPa | ≥65 | ASTM E8 | |
Elongation | % | ≥20 | ASTM E8 | |
Peel strength | N/cm | ≥6.13 | ASTM B736 | |
Heat Seal strength | N/cm | ≥17.5 | ASTM B736 | |
Corrosion resistance | Grade | 7 | ||
Filler/ Flood Resistance 68 deg C/168 hrs | No Delamination | REAPE-39,PE-89 | ||
Water Resistance 68 deg C/ 168 hrs, Peel Strength68℃ | N/cm | ≥6.13 | ASTM B736 | |
Dielectric Strength Two-Side, DC 1 Kv | No Break | |||
Package | ||||
Inner Diameter 76/150/406mm | Width | Outer Diameter | Core Material | |
76/150/406mm | 10mm-1000mm | Upto 1200mm | paper/steel/plastic core |
Keep the warehouse clean. Avoid exposure to direct sunlight, pollution and all damage cuased by external forces.
Skilled operators should take or lay the materials gently, avoid scrap and crash problems.
The above mentioned data sheet should, however, only be regarded as a general guide to product properties and not as a guarantee. Some of the properties can be changed as a result of our efforts to improve the quality of our products. All listed test method is just for reference, actual test performed according to modified equipment and conditions.

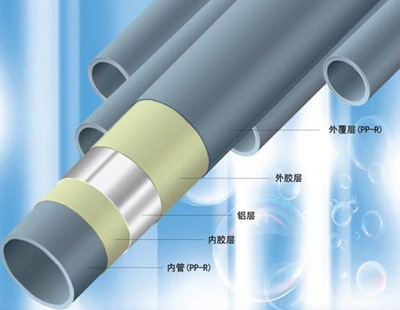

Aluminium thickness | 0.150mm 0.120mm |
Coating Material | Polypropylene |
(tolerance±0.02mm) | |||
Aluminium width | 600mm max | QF551/MITSUI | |
(tolerance±0.4mm) | |||
Alloy No | 3005、3003、 8011 |
Roll length | 1300m~2600m |
Coating | single sides | Inner roll diameter | 150mm—152mm |
Coating thickness | 0.04mm、 0.05mm |
Tensile strength | 120-165N/mm |
Elongation | EN546(≥10%) | Peel Strength | ≥6N/cm |

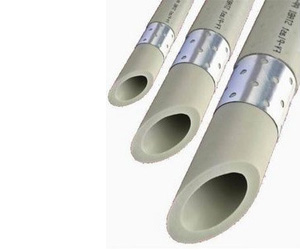

Aperture | 2.0mm | 2.5mm | 3mm |
237
Aluminium thickness | 0.150mm 0.120mm |
Coating Material | Polypropylene |
(tolerance±0.02mm) | |||
Aluminium width | 600mm max | QF551/MITSUI | |
(tolerance±0.4mm) | |||
Alloy No | 3005、3003、 8011 |
Roll length | 1300m~2600m |
Coating | single sides | Inner roll diameter | 150mm—152mm |
Coating thickness | 0.04mm、 0.05mm |
Tensile strength | 120-165N/mm |
Elongation | EN546(≥10%) | Peel Strength | ≥6N/cm |
237
Aluminium thickness | 0.150mm 0.120mm |
Coating Material | Polypropylene |
(tolerance±0.02mm) | |||
Aluminium width | 600mm max | QF551/MITSUI | |
(tolerance±0.4mm) | |||
Alloy No | 3005、3003、 8011 |
Roll length | 1300m~2600m |
Coating | single sides | Inner roll diameter | 150mm—152mm |
Coating thickness | 0.04mm、 0.05mm |
Tensile strength | 100—120N/mm |
Peel Strength | ≥6N/15mm | Elongation | ≥12% |
Vickers hardness | 20-27 | / | / |
